R103医用X射线限束器安装使用手册
R103医用X射线限束器安装使用手册
一、序言introduction
在安装调试R103限束器前必须仔细阅读本说明书，这样才能正确安装调试和使用R103限束器。
This manual must be read carefully before installing and debugging the R103 limiter to properly install, debug and use the R103 limiter.
R103限束器适用球管的最高压为100kVp。
The maximum pressure for the R103 sensor is 100 kVp.
R103限束器能任意调节X射线照射野的大小。本限束器是采用多层叶片防护的结构，能起到有效的防护作用，提高X射线摄影的效果，减少患者和医务人员的被照射量。
The R103 beam limiter can arbitrarily adjust the size of the X-ray irradiation field. This beam limiter is a multi-layer blade protection structure, which can play an effective protective role, improve the effect of X-ray photography, and reduce the amount of exposure to patients and medical personnel.
按GB9706.1-2007中6.8.1的规定本产品属于I类产品。
This product belongs to Class I product according to that specified in 6.8.1 of GB9706.1-2007.
二、技术指标qualification
项目 project | 条件 condition | 指标 metric | |
X射线辐射野 X-ray radiation field | 形状 form |
| 矩形 rectangle |
最小值 least value | SID=100cm | ≤5cmx5cm | |
最大值 crest value | (43+1)cmx(43+1)cm | ||
光野指示亮度 Light field indicates brightness | SID=100cm | >140Lux | |
光野指示边缘照比度 The light field indicates the edge illumination ratio | ≥4 | ||
光野指示精度 Light field indicates accuracy | ≤SIDx2% | ||
光野灯泡点亮时间 When the light field light bulb is lit | 单次、自动熄灭 Single, automatic extinguishing | 30S±5% | |
光野灯泡 Light field light bulb | 型号 model |
| PHILIPS 7158XHP |
规格 specifications |
| 24V/150W | |
滤过 filtration | 固有滤过 inherent filtration | 管电压 70kVp Tube voltage is 70 kVp | ≥1mmAl
|
附加滤过 added filtration |
| 视需要附加 Attached as required | |
适用x射线管焦点到X射线管窗口安装面距离 Applicable x-ray tube focus to the X-ray tube window mounting surface distance |
| 45mm | |
X 射线辐射最大泄漏 The X-ray radiation has the maximum leakage | X射线管电压100kVp，与焦点距离1m，X射线辐射野=0x0 X-ray tube voltage of 100 kVp, 1m distance from the focus, X-ray radiation field =0x0 | <lmGy/h | |
运行方式 run mode |
| 短时加载、连续运行 Short-time loading, continuous operation | |
操作方式 mode of operation |
| 手动 hand movement | |
对地漏电流 To the ground leakage current | 单一故障状态 Single fault state | AC27V | <lmA
|
正常状态 whack | <0.5mA
| ||
外壳漏电流 Case leakage current | 单一故障状态 Single fault state | <0.5mA
| |
正常状态 whack | <0.1mA | ||
接地电阻 earthing resistance | 25A/AC6V、10S | ≤0.1Ω | |
电源输入 power input | 按GB9706.1-2007标准的相关规定连接电源 Connect the power supply according to the relevant provisions of the GB9706.1-2007 standard
| AC24V±10% 150VA 50Hz~60Hz | |
外形尺寸(长x宽x高) Overall dimensions (length x, width x, height) |
| 180mmx155mmx 100mm | |
重量 weight | 不含电缆 No cable | 约 2.6kg About 2.6kg | |
产品使用条件 Product use conditions |
| 环境温度为 +10℃-+40℃; Ambient temperature is + 10℃ - + 40℃; 相对湿度不大于≤75%; Relative humidity is not greater than 75%; 大气压力:700hpa-1060hpa。 Atmospheric pressure: 700 hpa-1060 hpa. | |
产品贮存条件 Product storage conditions |
| 温度:-20℃-+55℃; temperature:-20℃-+55℃; 相对湿度:≤93; Relative humidity: 93; 大气压力:700hpa-1060hpa。 Atmospheric pressure: 700 hpa-1060 hpa. | |
运输条件 traffic condition |
| 层叠不得超过4层，防雨淋 The layer shall not exceed 4 layers, rain-proof | |
光野灯泡 Light field light bulb | 型号 model |
| SST-50 |
规格 specifications |
| 15W | |
电源输入 power input | 按GB9706.1-2007标准的相关规定连接电源 Connect the power supply according to the relevant provisions of the GB9706.1-2007 standard | AC24V±10% 50VA 或DC24V±10% 50W 50Hz~60Hz | |
<!--[if !supportLists]-->三、<!--[endif]-->整机外形图Overall shape map

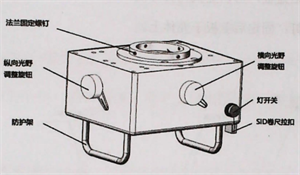

图1整机外形图
Figure 1. Outline drawing of the whole machine
<!--[if !supportLists]-->1、<!--[endif]-->法兰固定螺钉:用于将限束器固定到X射线管球上。
1. Flange fixing screw: used to secure the beam limiter to the X-ray tube ball.
2、横向光野调整旋钮:手动调整向光野范围。
2, the horizontal light field adjustment knob: manually adjust to the light field range.
3、纵向光野调整旋钮:手动调整纵向光野范围。
3, the longitudinal light field adjustment knob: manually adjust the longitudinal light field range.
<!--[if !supportLists]-->4、<!--[endif]-->SID 尺拉扣:拉出 SID 尺测量 SID 数值。
4, the SID ruler pull button: pull out the SID, the ruler to measure the SID value.
<!--[if !supportLists]-->5、<!--[endif]-->灯开关:按下此开关，光野灯亮 30S 后，自动熄灭。
5, light switch: press this switch, light field light on 30S, automatically off.
<!--[if !supportLists]-->6、<!--[endif]-->防护架:限定最小焦皮距。
6, protective rack: limit the minimum focal length.

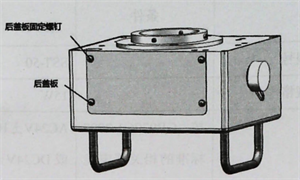

图2 后侧图Bottom of Figure 2
<!--[if !supportLists]-->1、<!--[endif]-->后盖板:拆下后盖板，可以更换光野灯泡。
1. Rear cover plate: remove the rear cover plate, and the light field bulb can be replaced.
<!--[if !supportLists]-->2、<!--[endif]-->后盖板固定螺钉:固定后盖板于壳体上。
<!--[if !supportLists]-->2. <!--[endif]-->Fixed screw for the rear cover plate: fix the rear cover plate on the shell.
<!--[if !supportLists]-->四、<!--[endif]-->结构structure

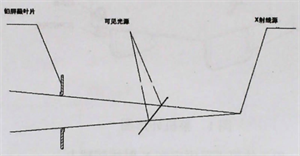

图3 R103结构示意图
Figure 3 Structural diagram of R 103
R103手动限束器采用单层两组叶片进行防护，从结构上保证了X射线的最小散射，是X射线防护的理想装置。
The R103 manual beam limiter uses a single layer of two groups of blades for protection, which ensures the minimum scattering of X-ray from the structure, and is an ideal device for X-ray protection.
<!--[if !supportLists]-->1、<!--[endif]-->铅屏蔽叶片:它起到限制X射线照射范围的边缘的作用。
1, lead shielding blade: it plays a role in limiting the edge of the X-ray radiation range.
<!--[if !supportLists]-->2、<!--[endif]-->可见光源:用于指示X射线照射范围。
2.Visible light source: it is used to indicate the X-ray irradiation range.
<!--[if !supportLists]-->五、<!--[endif]-->安装install
<!--[if !supportLists]-->1、<!--[endif]-->用内六角扳手旋松4个法兰固定螺钉螺丝，将限束器上的法兰套在X射线管球的窗口上。
1. Set the screw of the flange on the beam limiter on the window of the X-ray tube ball.
2、将限束器位置调整后拧紧法兰固定螺钉。
2. Tighten the flange fixing screw after adjusting the position of the beam limiter.
<!--[if !supportLists]-->六、<!--[endif]-->调整adjust
<!--[if !supportLists]-->1、<!--[endif]-->按电气原理图接线。
<!--[if !supportLists]-->1. <!--[endif]-->Wiring according to the electrical schematic diagram.

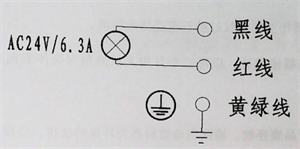

图5 电气原理图
Figure 5. Electrical schematic diagram
<!--[if !supportLists]-->2、<!--[endif]-->调整照射视野与被照体的:通电，按下灯开关，检查可见光照射视野的十字线是否居中，若有偏离，请调整X射线管球，使十字线居中。
2.Adjust the center of the irradiation field and the subject: energon, press the light switch and check whether the cross of the visible light field is centered. If there is any deviation, please adjust the X-ray tube ball to make the cross center.
<!--[if !supportLists]-->七、<!--[endif]-->操作operate
<!--[if !supportLists]-->1. <!--[endif]-->旋转纵向调节手钮，调整纵向照射视野的大小;
1. Rotate the longitudinal adjustment hand knob to adjust the size of the longitudinal irradiation field of vision;
2.旋转横向调节手钮，调整横向照射视野的大小。
2. Rotate the lateral adjustment hand knob to adjust the size of the lateral irradiation field of view.
3.按下灯开关，内部定时器启动，可见光照射视野光照约30秒后自动关闭。
3. Press the light switch, and the internal timer starts, and the visible light is automatically closed for about 30 seconds.
八、换灯泡
1.卸下限束器的后盖板(见图2)。
1. Remove the rear cover plate of the harness limit device (see Figure 2).
2.卸下灯遮光罩。
2. Remove the light hood.
3.松开灯座上固定灯泡的2个螺钉，将灯泡从插座中卸下，将新灯泡插人，直到插人底部。
3. Release the two screws fixing the bulb on the lamp holder, remove the bulb from the socket, and insert the new bulb until the bottom.
4.点亮灯泡，调整灯泡的角度，使限束器的十字线居中后旋紧固定灯泡的2个螺钉。
4. Light the bulb and adjust the Angle of the bulb so that the cross of the limiter is in the center and tighten the two screws fixing the bulb.
【注意】
[pay attention to]
<!--[if !supportLists]-->1. <!--[endif]-->请将接地线按有关标准可靠接地，以保证。
1. Please ground the grounding wire reliably according to the relevant standards to ensure the safety.
2.更换时不能用手直接接触灯的石英壳体，以防止石英壳沾有指纹和油性污垢，更换后请用酒精擦拭灯的石英壳清除污渍。
2. When replacing, do not directly contact the quartz shell of the lamp with your hand to prevent the quartz shell from having fingerprints and oily dirt. After the replacement, please wipe the quartz shell of the lamp with alcohol to remove stains.
3.限束器使用后，应每三个月用无机溶剂对壳体表面进行擦拭，以保持清洁。
3. After using the beam limiter, the shell surface should be wiped with inorganic solvent every three months to keep it clean.
4.本产品废弃物，请按当地政府有关环保的法律、法规进行废弃处理，以保护当地的环境。
4. The waste of this product should be discarded according to the laws and regulations on environmental protection of the local government to protect the local environment.
九、质量保证 Quality assurance
1.自客户收到限束器之日起，本厂质保期为12个月(不含灯泡)。
1. The warranty period is 12 months from the date of receipt (excluding bulbs).
2.质量问题不包括因安装、搬运等导致的故障问题。
2. Quality problems do not include faults caused by installation and handling.
3.在保修期内，若未书面提出申请，并经我厂允许，不得拆机，否则后果自负，不予保修。
3. During the warranty period, if the application is not submitted in writing and the factory allows it, we shall not dismantle the machine, otherwise the consequences will be borne and the warranty will not be granted.
